com.openinventor.imageviz.engines.imagesegmentation.regiongrowing

Class SoMarkerBasedWatershedProcessing

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.imagesegmentation.regiongrowing.SoMarkerBasedWatershedProcessing

All Implemented Interfaces:

SafeDisposable

public class SoMarkerBasedWatershedProcessing
extends SoImageVizEngine

SoMarkerBasedWatershedProcessing engine performs a fast determination of the watershed lines. For an introduction, see Watershed principle.

SoMarkerBasedWatershedProcessing has 2 configurations. See outputMode field.

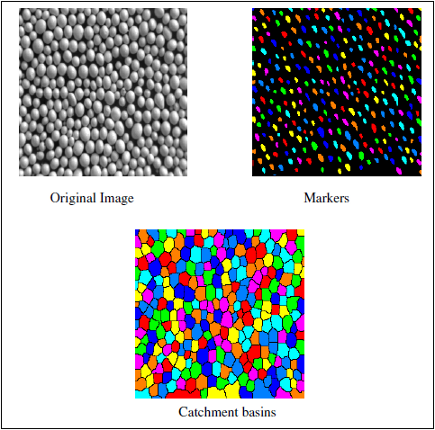

This engine performs a fast determination of the watershed lines from specified markers in a label image, followed by a labelling of the complementary set. It can be viewed as the zones of influence of the markers.

Either the separated basins are output in a label image, the crest lines being part of the complementary (not a label), or the crest lines are output in a binary image.

Note: Because two bits are used to code the pixels during the algorithm, input gray levels image should range from 0 to 16383. If the range is greater, a normalization is applied to reduce the dynamic of this image.

Notice: This engine requires to preliminarily load the whole input data set into memory to be computed. As a consequence the input data set will be automatically loaded before the execution of this engine, ignoring the maximum memory parameter of the SbImageDataAdapterHelper.getAppropriateAdapter function or SoFileDataAdapter class If the input data set cannot fit in memory, this engine will fail during its computation.

See also:

SoAddObjectToLabelProcessing, SoGrayscaleResconstructionProcessing

File format/default:

MarkerBasedWatershedProcessing {

computeMode	MODE_AUTO
neighborhood3d	CONNECTIVITY_26
outputMode	WATERSHED_RIDGES
inGrayImage	NULL
inMarkerImage	NULL
precisionMode	REPEATABLE

}

Library references: catchbasin fastwatershed

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SoMarkerBasedWatershedProcessing.OutputModes
static class	SoMarkerBasedWatershedProcessing.PrecisionModes

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
static int	FAST Deprecated. Use SoMarkerBasedWatershedProcessing.PrecisionModes.FAST instead.
SoSFImageDataAdapter	inGrayImage The input grayscale image.
SoSFImageDataAdapter	inMarkerImage The input marker (label) image.
SoSFEnum<SoImageVizEngine.Neighborhood3ds>	neighborhood3d In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outObjectImage The output image.
SoSFEnum<SoMarkerBasedWatershedProcessing.OutputModes>	outputMode Select the type of output mode.
SoSFEnum<SoMarkerBasedWatershedProcessing.PrecisionModes>	precisionMode Select the mode of algorithm precision for watershed.
static int	REPEATABLE Deprecated. Use SoMarkerBasedWatershedProcessing.PrecisionModes.REPEATABLE instead.
static int	SEPARATED_BASINS Deprecated. Use SoMarkerBasedWatershedProcessing.OutputModes.SEPARATED_BASINS instead.
static int	WATERSHED_RIDGES Deprecated. Use SoMarkerBasedWatershedProcessing.OutputModes.WATERSHED_RIDGES instead.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoMarkerBasedWatershedProcessing() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

SEPARATED_BASINS

@Deprecated
public static final int SEPARATED_BASINS

Deprecated. Use SoMarkerBasedWatershedProcessing.OutputModes.SEPARATED_BASINS instead.

WATERSHED_RIDGES

@Deprecated
public static final int WATERSHED_RIDGES

Deprecated. Use SoMarkerBasedWatershedProcessing.OutputModes.WATERSHED_RIDGES instead.

REPEATABLE

@Deprecated
public static final int REPEATABLE

Deprecated. Use SoMarkerBasedWatershedProcessing.PrecisionModes.REPEATABLE instead.

FAST

@Deprecated
public static final int FAST

Deprecated. Use SoMarkerBasedWatershedProcessing.PrecisionModes.FAST instead.

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

neighborhood3d

public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d

In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.

outputMode

public final SoSFEnum<SoMarkerBasedWatershedProcessing.OutputModes> outputMode

Select the type of output mode. . Default is WATERSHED_RIDGES

inGrayImage

public final SoSFImageDataAdapter inGrayImage

The input grayscale image. Default value is NULL. Supported types include: grayscale image.

inMarkerImage

public final SoSFImageDataAdapter inMarkerImage

The input marker (label) image. Default value is NULL. Supported types include: label color image.

precisionMode

public final SoSFEnum<SoMarkerBasedWatershedProcessing.PrecisionModes> precisionMode

Select the mode of algorithm precision for watershed. . Default is REPEATABLE

outObjectImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outObjectImage

The output image. Default value is NULL. Supported types include: binary image.

Constructor Detail

SoMarkerBasedWatershedProcessing

public SoMarkerBasedWatershedProcessing()

Constructor.
