com.openinventor.inventor.viewercomponents.nodes

Class SceneInteractor

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.nodes.SoNode

com.openinventor.inventor.nodes.SoGroup

com.openinventor.inventor.nodes.SoSeparator

com.openinventor.inventor.viewercomponents.nodes.SceneInteractor

All Implemented Interfaces:

SafeDisposable

Direct Known Subclasses:

SceneExaminer

public class SceneInteractor
extends SoSeparator

Tool class for easily building a basic OpenInventor application without using existing viewer classes.

The SceneInteractor is a simple extension of the SoSeparator node that allows handling of Open Inventor events. This class should be overridden as it provides only empty event handlers.

This node is intended to be used as the root of a scene graph. The SceneInteractor is a custom SoSeparator whose children are:

• an SoEventCallback node that handles keyboard, mouse and touch events
• a camera (switch between perspective and orthographic camera)
• a headlight
• the application's scene graph, which should be the last child.

The SceneInteractor uses an instance of SoCameraInteractor in order to manipulate the camera in response to OpenInventor events.

Class diagram of the SceneInteractor showing the relationship between the SoEventCallback, the SoCamera, the SoDirectionalLight (used as headlight) and the SoCameraInteractor.

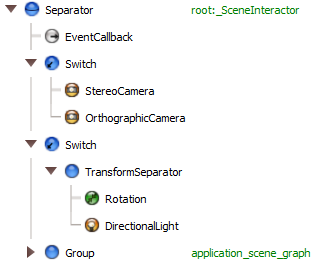

Detail of the scene graph rooted by a SceneInteractor:

Notes:

• A basic version of SceneInteractor is a supported part of the OpenInventor API, the prebuilt jar is located in the usual folder $OIVJHOME/jre/lib/ext.
• The basic version of SceneInteractor is also provided as source code in the sources folder to allow applications to customize and build their own interactive tool class. See $OIVJHOME/sources/com/openinventor/inventor/viewercomponents.

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SceneInteractor.CameraMode

Nested classes/interfaces inherited from class com.openinventor.inventor.nodes.SoSeparator

SoSeparator.Cachings, SoSeparator.FastEditings, SoSeparator.RenderUnitIds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields inherited from class com.openinventor.inventor.nodes.SoSeparator

AUTO, boundingBoxCaching, CLEAR_ZBUFFER, directVizCaching, DISABLE, fastEditing, KEEP_ZBUFFER, OFF, ON, pickCulling, renderCaching, renderCulling, renderUnitId

Fields inherited from class com.openinventor.inventor.nodes.SoGroup

boundingBoxIgnoring

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SceneInteractor()

Method Summary

Modifier and Type	Method and Description
void	adjustClippingPlanes(SbViewportRegion vpRegion) Adjust near and far clipping planes to minimize clipping of objects in the scene.
boolean	dispose() Explicitly call this method to force object to dispose its unmanaged resources.
void	enableHeadlight(boolean enabled) Enable or disable headlight.
SoCamera	getCamera() Returns the current camera.
SoCameraInteractor	getCameraInteractor()
SceneInteractor.CameraMode	getCameraMode() Get the current camera mode.
boolean	isHeadlightEnabled() Return if headlight is enabled.
void	setCameraMode(SceneInteractor.CameraMode mode) Set camera mode to perspective or orthographic.
void	viewAll(SbViewportRegion vpRegion) Set the camera to view all the scene.
void	viewAxis(SbVec3f direction, SbVec3f up) Moves the camera to be aligned with the given direction vector while keeping the "up" direction of the camera parallel to the specified up vector.

Methods inherited from class com.openinventor.inventor.nodes.SoSeparator

getNumRenderCaches, setNumRenderCaches

Methods inherited from class com.openinventor.inventor.nodes.SoGroup

addChild, findChild, getChild, getNumChildren, insertChild, removeAllChildren, removeChild, removeChild, replaceChild, replaceChild

Methods inherited from class com.openinventor.inventor.nodes.SoNode

affectsState, callback, copy, copy, distribute, doAction, getAlternateRep, getBoundingBox, getByName, getMatrix, getPrimitiveCount, getRenderUnitID, GLRender, GLRenderBelowPath, GLRenderInPath, GLRenderOffPath, grabEventsCleanup, grabEventsSetup, handleEvent, isBoundingBoxIgnoring, isOverride, pick, rayPick, search, setOverride, touch, write

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

SceneInteractor

public SceneInteractor()

Method Detail

dispose

public boolean dispose()

Description copied from class: Inventor

Explicitly call this method to force object to dispose its unmanaged resources. The object may not be reused in the application code after this call.

Specified by:

dispose in interface SafeDisposable

Overrides:

dispose in class SoBase

Returns:

true if this object native resources were successfully disposed; false if it was already disposed or no native resources has been registered for this object.

setCameraMode

public void setCameraMode(SceneInteractor.CameraMode mode)

Set camera mode to perspective or orthographic.

getCameraMode

public SceneInteractor.CameraMode getCameraMode()

Get the current camera mode.

getCameraInteractor

public SoCameraInteractor getCameraInteractor()

Returns:

the current camera interactor

getCamera

public SoCamera getCamera()

Returns the current camera.

Returns:

the current camera

adjustClippingPlanes

public void adjustClippingPlanes(SbViewportRegion vpRegion)

Adjust near and far clipping planes to minimize clipping of objects in the scene. This adjustment, based on the bounding box of the scene, ensures that shapes will not be clipped and also that depth buffer precision is maximized. This method should be called before each render traversal.

viewAll

public void viewAll(SbViewportRegion vpRegion)

Set the camera to view all the scene.

viewAxis

public void viewAxis(SbVec3f direction,
                     SbVec3f up)

Moves the camera to be aligned with the given direction vector while keeping the "up" direction of the camera parallel to the specified up vector.

Parameters:

direction - the new view direction vector

up - the new "up" direction

enableHeadlight

public void enableHeadlight(boolean enabled)

Enable or disable headlight.

isHeadlightEnabled

public boolean isHeadlightEnabled()

Return if headlight is enabled.
