com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton

Class SoSkeletonProcessing2d

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton.SoSkeletonProcessing2d

All Implemented Interfaces:

SafeDisposable

public class SoSkeletonProcessing2d
extends SoImageVizEngine

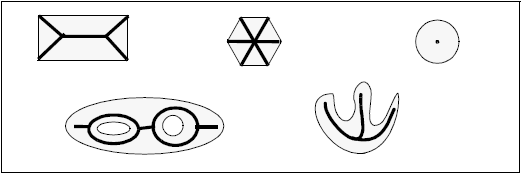

SoSkeletonProcessing2d engine computes the morphological skeleton of objects. The skeleton of a set X is the line made up of those points for which the distance to the boundary of the set is reached by at least two points. During the first iteration, if , the central point will be replaced with .

Imagine that the set X is a very dry herb prairie which starts to burn from all the points of its boundary. The skeleton would be the line where the fires meet. Using the same analogy, we may define the quench function as the time for the fire to reach this line.

See also: SoEndPointsProcessing2d, SoTriplePointsProcessing2d, SoPruneProcessing2d.

File format/default:

SkeletonProcessing2d {

computeMode	MODE_AUTO
inBinaryImage	NULL

}

Library references: skeleton

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
SoSFImageDataAdapter	inBinaryImage The input binary image.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outBinaryImage The output binary image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoSkeletonProcessing2d() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

inBinaryImage

public final SoSFImageDataAdapter inBinaryImage

The input binary image. Default value is NULL. Supported types include: binary color image.

outBinaryImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage

The output binary image. Default value is NULL. Supported types include: binary image.

Constructor Detail

SoSkeletonProcessing2d

public SoSkeletonProcessing2d()

Constructor.
