com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton

Class SoInfluenceZonesProcessing

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton.SoInfluenceZonesProcessing

All Implemented Interfaces:

SafeDisposable

public class SoInfluenceZonesProcessing
extends SoImageVizEngine

SoInfluenceZonesProcessing engine The SoInfluenceZonesProcessing engine computes the skeleton by Influence Zone (SKIZ).

For an introduction, see section :

• Morphology
• Skeletonization

Skeletonization is used to produce a simplified representation of the objects in an image, while preserving their geometrical structure. The representation may then be used to calculate length, direction, etc. or to detect special topological structures such as end or triple points (number of crossings). Skeletonization is a transformation based on the thinning of connected components until a line is achieved.

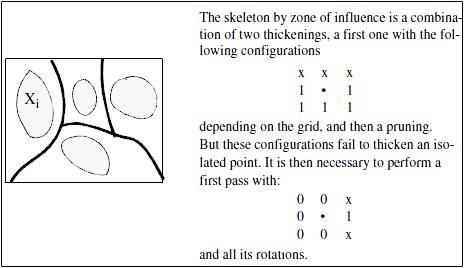

This engine produces a pruned skeleton of the background. The influence zone of a particle X is the set of points closer to X than to any other particle Y. The skeleton by influence zones is the boundary splitting the different influence zones, and it separates the image into zones surrounding each object.

This engine searches the skeleton of a binary or labelled image by influence zones. If the input is a binary image, it is first labelled, then the influence zones are determined by successive conditional dilations. The process stops as soon as all the zones are hitting each other.

File format/default:

InfluenceZonesProcessing {

computeMode	MODE_AUTO
neighborhood3d	CONNECTIVITY_26
inObjectImage	NULL

}

Library references: skiz

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
SoSFImageDataAdapter	inObjectImage The input binary or label image.
SoSFEnum<SoImageVizEngine.Neighborhood3ds>	neighborhood3d In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outBinaryImage The output binary image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoInfluenceZonesProcessing() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

neighborhood3d

public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d

In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.

inObjectImage

public final SoSFImageDataAdapter inObjectImage

The input binary or label image. Default value is NULL. Supported types include: binary label color image.

outBinaryImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage

The output binary image. Default value is NULL. Supported types include: binary image.

Constructor Detail

SoInfluenceZonesProcessing

public SoInfluenceZonesProcessing()

Constructor.
