com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton

Class SoCentroidProcessing2d

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.hitormissandskeleton.SoCentroidProcessing2d

All Implemented Interfaces:

SafeDisposable

public class SoCentroidProcessing2d
extends SoImageVizEngine

SoCentroidProcessing2d engine The SoCentroidProcessing2d engines computes the centroid of object.

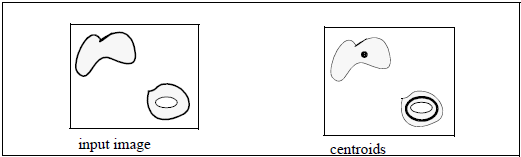

For an object without holes, the centroid is a unique point. For an object with holes, the centroid is made of rings surrounding each hole, as in Figure 1. The SoCentroidProcessing2d engine performs successive thinnings with rotations and until convergence, using the D configuration: where means "don't care".

Do not confuse the centroid with a classical center of gravity, which may be outside the object as in the case of a boomerang-shaped particle. However, for quasi-convex objects the centroid is very close to the centre of gravity.

File format/default:

CentroidProcessing2d {

inBinaryImage

NULL

}

Library references: centroid

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFImageDataAdapter	inBinaryImage The input binary image.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outImage The output image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoCentroidProcessing2d() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

inBinaryImage

public final SoSFImageDataAdapter inBinaryImage

The input binary image. Default value is NULL. Supported types include: binary color image.

outImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outImage

The output image. Default value is NULL. Supported types include: grayscale binary label color image.

Constructor Detail

SoCentroidProcessing2d

public SoCentroidProcessing2d()

Constructor.
