Class SoHExtremaProcessing

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.geodesictransformations.SoHExtremaProcessing

All Implemented Interfaces:

SafeDisposable

public class SoHExtremaProcessing
extends SoImageVizEngine

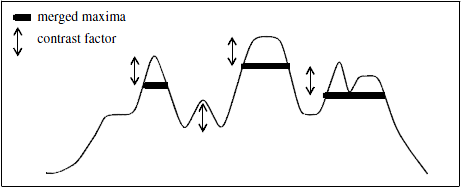

SoHExtremaProcessing engine The SoHExtremaProcessing engine merges the regional minima or maxima.

This engine merges regional minima or maxima based on a contrast coefficient criterion h. It is useful for filtering noisy minima or maxima sets. It can also be used as particle markers in various algorithms, e.g. watershed detection.

Case Minima

The input is added to the contrast coefficient h, then a SoExtremaImpositionProcessing (case Erosion) is performed on the result of the addition.

The regional minima of the reconstructed image are called the H-Minima.

Case Maxima

The input is subtracted from the contrast coefficient h, then a SoExtremaImpositionProcessing (case Dilation) is performed on the result of the subtraction.

The regional maxima of the reconstructed image are called the H-Maxima.

See also:

SoRegionalExtremaProcessing, SoGrayscaleResconstructionProcessing.

File format/default:

HExtremaProcessing {

computeMode	MODE_AUTO
neighborhood3d	CONNECTIVITY_26
regionalOperator	MAXIMA
inImage	NULL
contrast	4

}

Library references: merge_maxima merge_minima

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	SoHExtremaProcessing.RegionalOperators

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
SoSFInt32	contrast The contrast.
SoSFImageDataAdapter	inImage The input image.
static int	MAXIMA Deprecated. Use SoHExtremaProcessing.RegionalOperators.MAXIMA instead.
static int	MINIMA Deprecated. Use SoHExtremaProcessing.RegionalOperators.MINIMA instead.
SoSFEnum<SoImageVizEngine.Neighborhood3ds>	neighborhood3d In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outBinaryImage The output binary image.
SoSFEnum<SoHExtremaProcessing.RegionalOperators>	regionalOperator Select the operator.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoHExtremaProcessing() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

MINIMA

@Deprecated
public static final int MINIMA

Deprecated. Use SoHExtremaProcessing.RegionalOperators.MINIMA instead.

MAXIMA

@Deprecated
public static final int MAXIMA

Deprecated. Use SoHExtremaProcessing.RegionalOperators.MAXIMA instead.

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

neighborhood3d

public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d

In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.

regionalOperator

public final SoSFEnum<SoHExtremaProcessing.RegionalOperators> regionalOperator

Select the operator. . Default is MAXIMA

inImage

public final SoSFImageDataAdapter inImage

The input image. Default value is NULL. Supported types include: grayscale image.

contrast

public final SoSFInt32 contrast

The contrast. Default value is 4.

outBinaryImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage

The output binary image. Default value is NULL. Supported types include: binary image.

Constructor Detail

SoHExtremaProcessing

public SoHExtremaProcessing()

Constructor.
