com.openinventor.imageviz.engines.mathematicalmorphology.erosionanddilation

Class SoDilationCubeProcessing

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.mathematicalmorphology.erosionanddilation.SoDilationCubeProcessing

All Implemented Interfaces:

SafeDisposable

public class SoDilationCubeProcessing
extends SoImageVizEngine

SoDilationCubeProcessing engine The SoDilationCubeProcessing engine performs a dilation using a structuring element matching with a cube.

For an introduction, see:

• section Morphology
• Introduction and definition for dilations

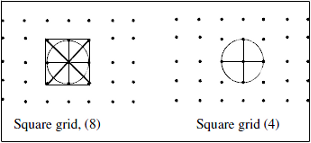

This engine uses the default structuring element of 8 pixels for a square grid.

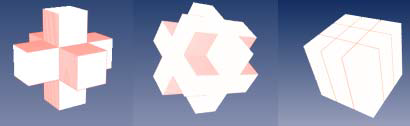

With a 3D image, this engine uses the default structuring element of 6, 18 or 26 voxels.

See also:

SoErosionCubeProcessing.

File format/default:

DilationCubeProcessing {

computeMode	MODE_AUTO
neighborhood3d	CONNECTIVITY_26
inImage	NULL
elementSize	3

}

Library references: dilate

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
SoSFInt32	elementSize The half size of the structuring element.
SoSFImageDataAdapter	inImage The input image.
SoSFEnum<SoImageVizEngine.Neighborhood3ds>	neighborhood3d In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels.
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outImage The output image.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoDilationCubeProcessing() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

neighborhood3d

public final SoSFEnum<SoImageVizEngine.Neighborhood3ds> neighborhood3d

In 3D configuration (see computeMode), the neighborhood connectivity defines the connectivity considered for processing adjacent voxels. . Default is CONNECTIVITY_26.

inImage

public final SoSFImageDataAdapter inImage

The input image. Default value is NULL. Supported types include: grayscale binary label color image.

elementSize

public final SoSFInt32 elementSize

The half size of the structuring element. A structuring element always has an odd side length (3x3, 5x5, etc) which is defined by 2 * elementSize + 1. Default value is 3.

outImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outImage

The output image. Default value is NULL. Supported types include: grayscale binary label color image.

Constructor Detail

SoDilationCubeProcessing

public SoDilationCubeProcessing()

Constructor.
