com.openinventor.imageviz.engines.imagesegmentation.binarization

Class SoHysteresisThresholdingProcessing

java.lang.Object

com.openinventor.inventor.Inventor

com.openinventor.inventor.misc.SoBase

com.openinventor.inventor.fields.SoFieldContainer

com.openinventor.inventor.engines.SoEngine

com.openinventor.imageviz.engines.SoImageVizEngine

com.openinventor.imageviz.engines.imagesegmentation.binarization.SoHysteresisThresholdingProcessing

All Implemented Interfaces:

SafeDisposable

public class SoHysteresisThresholdingProcessing
extends SoImageVizEngine

SoHysteresisThresholdingProcessing image filter The SoHysteresisThresholdingProcessing engine computes a SoHysteresisThresholdingProcessing threshold.

The SoHysteresisThresholdingProcessing uses a SoHysteresisThresholdingProcessing loop to provide a more connected threshold result.

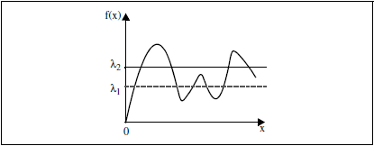

Two gray level values and and ( thresholds parameter) are specified. The output is given by:

• If , the point is in the and is preserved:
• If , the point is in the :
• If , the point is in the . The point is preserved if connected to a retained area ( ), or is rejected if not ( ).

The Figure shows the result of a lower bound threshold with value and . Figure is the result of an SoHysteresisThresholdingProcessing, where the points in the fuzzy area not connected with points in the retained area are rejected.

This command can be used after an edge detection, which generates, as well as edges, a lot of noise. True edges have a higher chance to be connected to a retained area than pixels corresponding to noise.

See also:

SoAutoThresholdingProcessing.

File format/default:

HysteresisThresholdingProcessing {

computeMode	MODE_AUTO
inImage	NULL
thresholdLevel	255.0f 128.0f
maxLength	1

}

Library references: hysteresis

Nested Class Summary

Nested classes/interfaces inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

SoImageVizEngine.ComputeModes, SoImageVizEngine.EventArg, SoImageVizEngine.Neighborhood3ds

Nested classes/interfaces inherited from class com.openinventor.inventor.Inventor

Inventor.ConstructorCommand

Field Summary

Fields

Modifier and Type	Field and Description
SoSFEnum<SoImageVizEngine.ComputeModes>	computeMode Select the compute Mode (2D or 3D or AUTO) .
SoSFImageDataAdapter	inImage The input image.
SoSFInt32	maxLength The maximum length allowed for pixel in fuzzy zone (0:until convergence).
SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter>	outBinaryImage The output binary image.
SoSFVec2f	thresholdLevel The low and high threshold levels.

Fields inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

CONNECTIVITY_18, CONNECTIVITY_26, CONNECTIVITY_6, MODE_2D, MODE_3D, MODE_AUTO, onBegin, onEnd, onProgress

Fields inherited from class com.openinventor.inventor.Inventor

VERBOSE_LEVEL, ZeroHandle

Constructor Summary

Constructors

Constructor and Description
SoHysteresisThresholdingProcessing() Constructor.

Method Summary

Methods inherited from class com.openinventor.imageviz.engines.SoImageVizEngine

abortEvaluate, isEvaluating, startEvaluate, waitEvaluate

Methods inherited from class com.openinventor.inventor.engines.SoEngine

copy, getByName, getOutput, getOutputName

Methods inherited from class com.openinventor.inventor.fields.SoFieldContainer

copyFieldValues, copyFieldValues, enableNotify, fieldsAreEqual, get, getAllFields, getEventIn, getEventOut, getField, getFieldName, hasDefaultValues, isNotifyEnabled, set, setToDefaults

Methods inherited from class com.openinventor.inventor.misc.SoBase

dispose, getEXTERNPROTO, getName, getPROTO, isDisposable, isSynchronizable, setName, setSynchronizable, touch

Methods inherited from class com.openinventor.inventor.Inventor

getAddress, getNativeResourceHandle, startInternalThreads, stopInternalThreads

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

computeMode

public final SoSFEnum<SoImageVizEngine.ComputeModes> computeMode

Select the compute Mode (2D or 3D or AUTO) . Default is MODE_AUTO

inImage

public final SoSFImageDataAdapter inImage

The input image. Default value is NULL. Supported types include: grayscale image.

thresholdLevel

public final SoSFVec2f thresholdLevel

The low and high threshold levels. Default value is SbVec2f(255.0f,128.0f).

maxLength

public final SoSFInt32 maxLength

The maximum length allowed for pixel in fuzzy zone (0:until convergence). Default value is 1.

outBinaryImage

public final SoImageVizEngineOutput<SoSFImageDataAdapter,SoImageDataAdapter> outBinaryImage

The output binary image. Default value is NULL. Supported types include: binary image.

Constructor Detail

SoHysteresisThresholdingProcessing

public SoHysteresisThresholdingProcessing()

Constructor.
